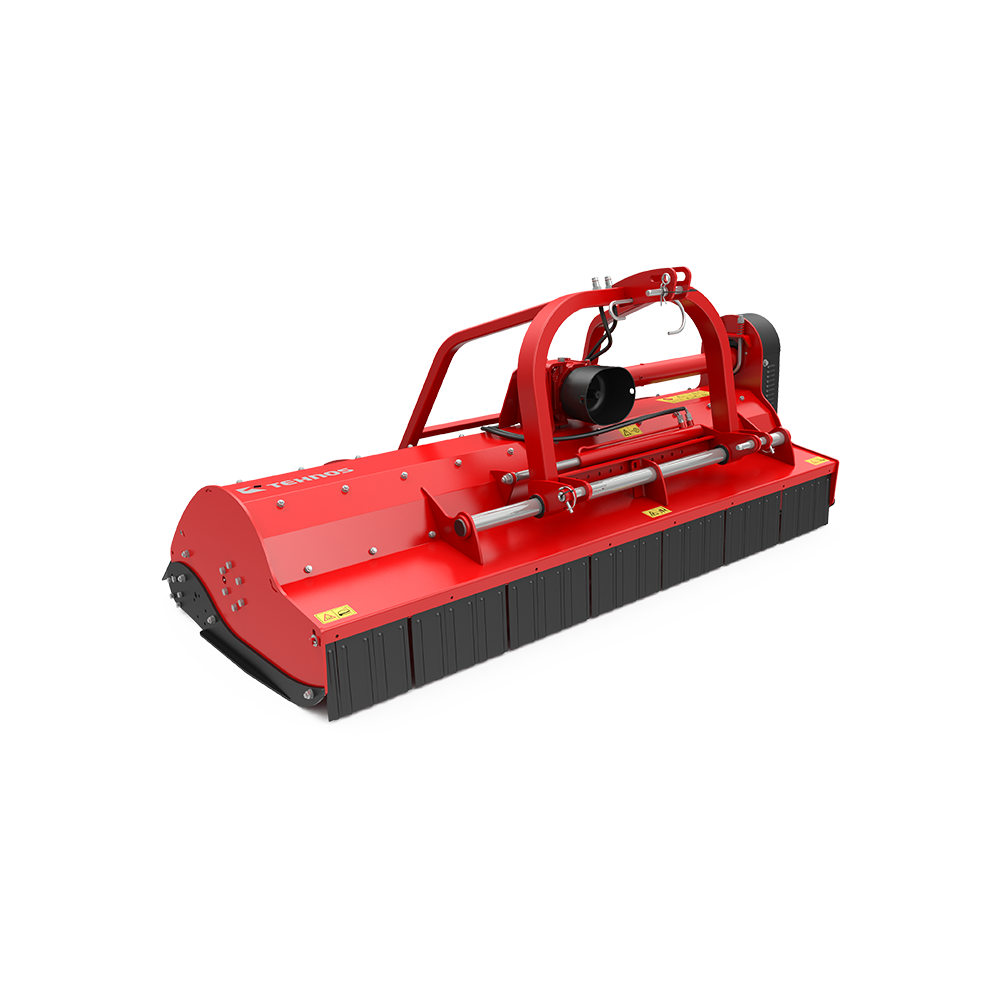

MU PROFI LW
Uniwersalne kosiarki bijakowe
With its robust design, the universal flail mower MU PROFI LW is suitable for demanding working conditions. It is used in agriculture, municipal maintenance, orchards and vineyards and for pasture clearing.
The electronically balanced rotor with the patented Low Vib (LW) distribution of the flails ensures less vibration and minimal bending stress and deformation, extending the service life of the flail mower. Robust flails made of forged steel ensure efficient mulching by creating turbulence and vacuum.
The double skin housing ensures structural strength and greater durability. The two positions of the supporting roller make it easy to adapt to different user requirements. The inner position ensures faster material flow and thus enables higher working speeds, while the outer position improves the quality of mulching. The adjustable maintenance hood allows provides additional flexibility.
130-220 cm
30-100 KM
168 mm
488-692 kg
Tehnične skice
The inner position of the supporting roller
The inner position ensures faster material flow and thus enables higher working speeds.
The outer position of the supporting roller
The outer position improves the quality of the mulching.
DANE TECHNICZNE
|
MU 130 LW
|
MU 150 LW
|
MU 170 LW
|
MU 200 LW
|
MU 220 LW
|
|
|---|---|---|---|---|---|
|
Szerokość robocza (cm)
|
130
|
150
|
170
|
200
|
220
|
|
Przesunięcie maszyny (cm)
|
41
|
41
|
51
|
51
|
51
|
|
Liczba pasów (szt.)
|
3
|
4
|
4
|
4
|
5
|
|
Średnica wirnika (mm)
|
168
|
168
|
168
|
168
|
168
|
|
Liczba bijaków (szt.)
|
12
|
14
|
16
|
18
|
20
|
|
Waga bijaka (kg)
|
1,4
|
1,4
|
1,4
|
1,4
|
1,4
|
|
Podwójna obudowa
|
√
|
√
|
√
|
√
|
√
|
|
Rzędy przeciwnoży
|
3
|
3
|
3
|
3
|
3
|
|
Uchylna klapa
|
√
|
√
|
√
|
√
|
√
|
|
Noże podnoszące (szt.)
|
8
|
9
|
10
|
12
|
13
|
|
Moc ciągnika (kW)
|
22-37
|
29-48
|
33-55
|
40-63
|
48-74
|
|
Moc ciągnika (KM)
|
30-50
|
40-65
|
45-75
|
55-85
|
65-100
|
|
Waga maszyny (kg)
|
488
|
553
|
593
|
652
|
692
|
DANE TECHNICZNE
MU 130 LW
130
Szerokość robocza (cm)
168
Średnica wirnika (mm)
30-50
Moc ciągnika (KM)
488
Waga maszyny (kg)
Przesunięcie maszyny (cm)
41
Liczba pasów (szt.)
3
Liczba bijaków (szt.)
12
Waga bijaka (kg)
1,4
Podwójna obudowa
√
Rzędy przeciwnoży
3
Uchylna klapa
√
Noże podnoszące (szt.)
8
Moc ciągnika (kW)
22-37
DANE TECHNICZNE
MU 150 LW
150
Szerokość robocza (cm)
168
Średnica wirnika (mm)
40-65
Moc ciągnika (KM)
553
Waga maszyny (kg)
Przesunięcie maszyny (cm)
41
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
14
Waga bijaka (kg)
1,4
Podwójna obudowa
√
Rzędy przeciwnoży
3
Uchylna klapa
√
Noże podnoszące (szt.)
9
Moc ciągnika (kW)
29-48
DANE TECHNICZNE
MU 170 LW
170
Szerokość robocza (cm)
168
Średnica wirnika (mm)
45-75
Moc ciągnika (KM)
593
Waga maszyny (kg)
Przesunięcie maszyny (cm)
51
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
16
Waga bijaka (kg)
1,4
Podwójna obudowa
√
Rzędy przeciwnoży
3
Uchylna klapa
√
Noże podnoszące (szt.)
10
Moc ciągnika (kW)
33-55
DANE TECHNICZNE
MU 200 LW
200
Szerokość robocza (cm)
168
Średnica wirnika (mm)
55-85
Moc ciągnika (KM)
652
Waga maszyny (kg)
Przesunięcie maszyny (cm)
51
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
18
Waga bijaka (kg)
1,4
Podwójna obudowa
√
Rzędy przeciwnoży
3
Uchylna klapa
√
Noże podnoszące (szt.)
12
Moc ciągnika (kW)
40-63
DANE TECHNICZNE
MU 220 LW
220
Szerokość robocza (cm)
168
Średnica wirnika (mm)
65-100
Moc ciągnika (KM)
692
Waga maszyny (kg)
Przesunięcie maszyny (cm)
51
Liczba pasów (szt.)
5
Liczba bijaków (szt.)
20
Waga bijaka (kg)
1,4
Podwójna obudowa
√
Rzędy przeciwnoży
3
Uchylna klapa
√
Noże podnoszące (szt.)
13
Moc ciągnika (kW)
48-74
SPRZĘT
Robustna konstrukcija, vsestranska funkcionalnost in dolga življenjska doba.
Standardna oprema1 test
- Rotor with patented Low Vib (LW) distribution of the flails
- High-quality double skin housing
- Rear linkage
- Manual left/right offset
- Purpose-designed counter knives, screwed in three rows
- Self-lubricating slide bushes
- Gearbox with free wheel
- Metal flaps
- Manual opening/closing of the maintenance hood
- Automatic belt tensioning
- Supporting roller
- Two positions of the supporting roller
- Adjustable sweeper arm length
Dodatna oprema
01
Double-sided linkage
Double-sided linkage
The double-sided linkage allows the flail mower to be mounted on the tractor either at the front or at the rear.
02
Turnable linkage
Turnable linkage
The turnable linkage allows the flail mower to be mounted on both sides, but unlike the double-sided linkage, in this case the linkage has to be manually reversed to the desired side of the flail mower. The linkage is one-sided, while the gearbox is double-sided.
03
Reversible gearbox
Reversible gearbox
The gearbox rotation works in both directions, meaning the flail mower will operate correctly regardless of the direction of rotation of the tractor's output shaft. Suitable for tractors with reversing driver station.
04
Hydraulic offset
Hydraulic offset
The hydraulic offset allows easy and precise left or right offset of the machine using a hydraulic cylinder.
05
Rubber flap protection
Rubber flap protection
The rubber flap acts as a mechanical barrier that prevents the ejection of smaller particles and dust from the flail mower at the supporting roller. Particularly recommended in combination with double-sided or turnable linkages.
06
Chains and rubber flap protection
Chains and rubber flap protection
When mulching terrain with a lot of stones, it is advisable to replace the metal flaps with chains and a rubber flap. These are better able to withstand the impact of stones.
07
Warning signs and LED lighting
Warning signs and LED lighting
Warning signs and LED lighting enhance visibility and safety during transport on the road. The LED lighting ensures visibility even in the dark.
08
Warning signs
Warning signs
Warning signs enhance visibility and ensure greater safety during both work and transport on the road.
09
Additional lug for I. category
Additional lug for I. category
The additional lugs are designed for tractors with a Category I three-point linkage.
10
Pick-up knives bracket
Pick-up knives bracket
The pick-up knives bracket with holes replaces the maintenance hood and allows the insertion of pick-up knives.
11
Pick-up knives
Pick-up knives
Pick-up knives perform a raking function, holding branches inside the flail mower long enough for thorough mulching. Their use requires a suitable bracket. They are especially suitable for work in orchards and vineyards.
12
Mountain skids
Mountain skids
Mountain skids are wider and rounder than standard skids. They are suitable for working on steep or hard-to-reach terrain where the direction of mulching is not optimal.
13
Wheels 8˝
Wheels 8˝
For 8" wheels, the supporting roller is replaced by a bar, onto which the two wheel brackets are mounted. The spacing between the brackets can be adjusted as needed. The brackets and 8" wheels are smaller and weaker compared to the 12".
Dodatna oprema
01
Double-sided linkage
The double-sided linkage allows the flail mower to be mounted on the tractor either at the front or at the rear.
02
Turnable linkage
The turnable linkage allows the flail mower to be mounted on both sides, but unlike the double-sided linkage, in this case the linkage has to be manually reversed to the desired side of the flail mower. The linkage is one-sided, while the gearbox is double-sided.
03
Reversible gearbox
The gearbox rotation works in both directions, meaning the flail mower will operate correctly regardless of the direction of rotation of the tractor's output shaft. Suitable for tractors with reversing driver station.
04
Hydraulic offset
The hydraulic offset allows easy and precise left or right offset of the machine using a hydraulic cylinder.
05
Rubber flap protection
The rubber flap acts as a mechanical barrier that prevents the ejection of smaller particles and dust from the flail mower at the supporting roller. Particularly recommended in combination with double-sided or turnable linkages.
06
Chains and rubber flap protection
When mulching terrain with a lot of stones, it is advisable to replace the metal flaps with chains and a rubber flap. These are better able to withstand the impact of stones.
07
Warning signs and LED lighting
Warning signs and LED lighting enhance visibility and safety during transport on the road. The LED lighting ensures visibility even in the dark.
08
Warning signs
Warning signs enhance visibility and ensure greater safety during both work and transport on the road.
09
Additional lug for I. category
The additional lugs are designed for tractors with a Category I three-point linkage.
10
Pick-up knives bracket
The pick-up knives bracket with holes replaces the maintenance hood and allows the insertion of pick-up knives.
11
Pick-up knives
Pick-up knives perform a raking function, holding branches inside the flail mower long enough for thorough mulching. Their use requires a suitable bracket. They are especially suitable for work in orchards and vineyards.
12
Mountain skids
Mountain skids are wider and rounder than standard skids. They are suitable for working on steep or hard-to-reach terrain where the direction of mulching is not optimal.
13
Wheels 8˝
For 8" wheels, the supporting roller is replaced by a bar, onto which the two wheel brackets are mounted. The spacing between the brackets can be adjusted as needed. The brackets and 8" wheels are smaller and weaker compared to the 12".
ZALETY
Stroj odlikujejo specifične prednosti, prilagojene za njegovo optimalno uporabo.
Patent Low Vib
| Patent Low Vib omogoča hitrejše vrtenje rotorja z večjo obodno hitrostjo kladiv, kar občutno izboljša učinek mulčenja. |
Mirno delovanje
Patentirana razporeditev kladiv na rotorju zmanjšuje vibracije, kar zagotavlja mirno delovanje in daljšo življenjsko dobo mulčerja.
Robustnost in vzdržljivost
So robustni in vzdržljivi ter tako primerni za uporabo v težjih delovnih pogojih.
Masivna kovana kladiva
Namensko oblikovana masivna kladiva iz kovanega jekla povzročajo pri mulčenju turbulenco zraka in vakuum ter s tem dvigovanje mase s tal.
Namenski protinoži v treh vrstah
Posebna oblika zamenljivih namenskih protinožev, privijačenih v treh vrstah, izboljša učinek drobljenja pri mulčenju.
Gladko drsenje
| Samomazalne PA-puše zagotavljajo gladko drsenje pomičnega priklopa. |
Varovanje pogona
Prostotečna sklopka v multiplikatorju omogoča varovanje pogona traktorja in uporabo klasičnega kardana.
Prilagodljiva delovna višina
Prilagodljiva delovna višina zagotavlja hitro in enostavno pomoč pri specifičnih zahtevah terena in okolja, kar omogoča optimalno delovanje mulčerja v različnih kmetijskih razmerah.
Dve poziciji podpornega valja
Notranja pozicija zagotavlja hitrejši pretok mase in s tem višje delovne hitrosti, medtem ko zunanja izboljša kvaliteto mulčenja.
