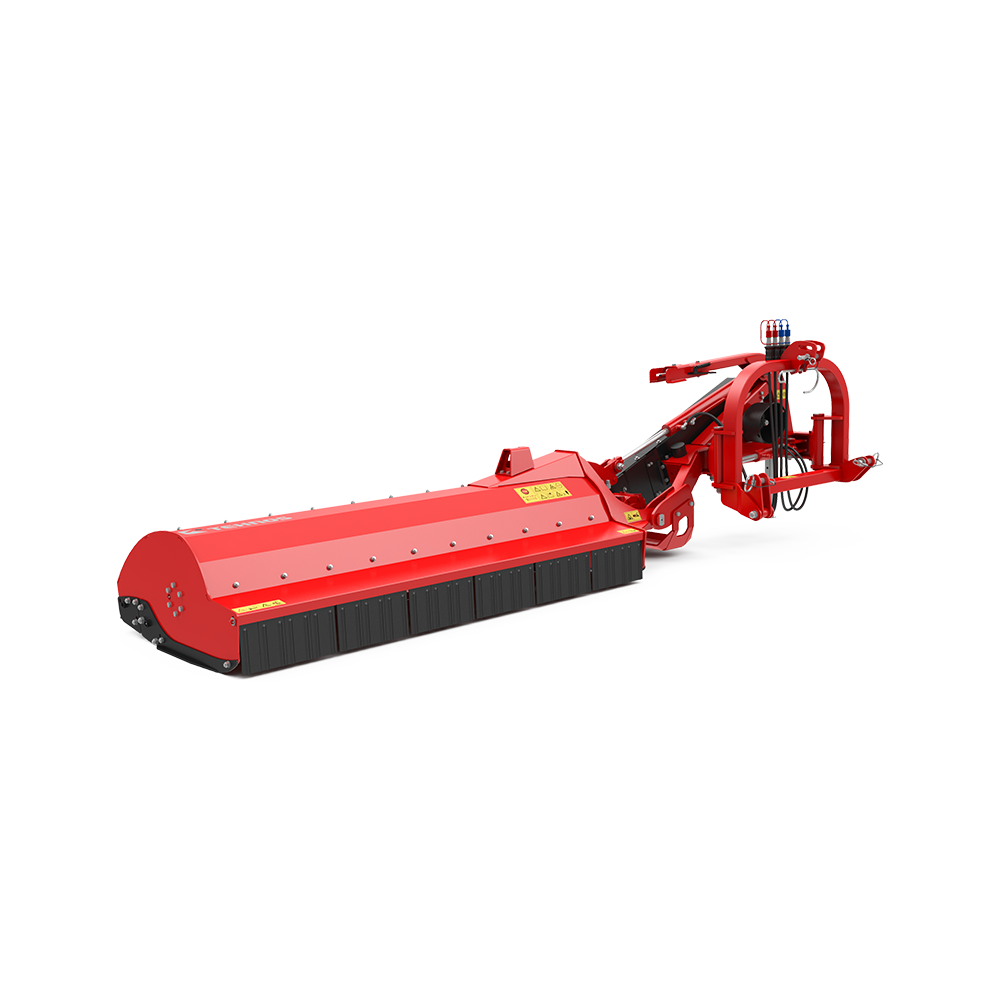

MBPL LIGHT LW
Kosiarki bijakowe boczne ruchome
With its sturdy yet lighter design, the flexible side flail mower MBPL LIGHT LW is suitable for smaller tractors used in agriculture and municipal maintenance. It is used for mulching river banks, ditches, roadsides, meadows, orchards, and pastures on slopes of up to +90° upward and -60° downward.
The electronically balanced rotor with the patented Low Vib (LW) distribution of the flails ensures less vibration and minimal bending stress and deformation, extending the service life of the flail mower. Robust flails made of forged steel ensure efficient mulching by creating turbulence and vacuum.
The single skin housing offers an excellent ratio between robustness and weight, allowing the flail mower to work optimally even with smaller tractors and on steep terrain. The mechanical collision protection with a swingarm ensures the flail mower offsets upon impact with an obstacle.
150-200 cm
45-80 KM
139 mm
627-691 kg
Tehnične skice
The inner position of the supporting roller
The inner position ensures faster material flow and thus enables higher working speeds.
The outer position of the supporting roller
The outer position improves the quality of the mulching.
Higher upward and downward tilt
Mulching on slopes of up to +90° upward and -60° downward enables uniform and efficient mulching of steep surfaces.
Hydraulic offset
The hydraulic offset allows easy and precise left or right offset of the machine using a hydraulic cylinder.
DANE TECHNICZNE
|
MBPL 150 LW
|
MBPL 170 LW
|
MBPL 200 LW
|
|
|---|---|---|---|
|
Szerokość robocza (cm)
|
150
|
170
|
200
|
|
Wysokość transportowa (cm)
|
244
|
264
|
294
|
|
Liczba pasów (szt.)
|
4
|
4
|
4
|
|
Średnica wirnika (mm)
|
139
|
139
|
139
|
|
Liczba bijaków (szt.)
|
14
|
16
|
18
|
|
Waga bijaka (kg)
|
1,0
|
1,0
|
1,0
|
|
Rzędy przeciwnoży
|
2
|
2
|
2
|
|
Nachylenie robocze
|
+ 90° / - 60°
|
+ 90° / - 60°
|
+ 90° / - 60°
|
|
Moc ciągnika (kW)
|
33-48
|
37-55
|
44-59
|
|
Moc ciągnika (KM)
|
45-65
|
50-75
|
60-80
|
|
Waga maszyny (kg)
|
627
|
650
|
691
|
|
Min. waga ciągnika (kg)
|
2500
|
3000
|
3500
|
DANE TECHNICZNE
MBPL 150 LW
150
Szerokość robocza (cm)
139
Średnica wirnika (mm)
45-65
Moc ciągnika (KM)
627
Waga maszyny (kg)
Wysokość transportowa (cm)
244
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
14
Waga bijaka (kg)
1,0
Rzędy przeciwnoży
2
Nachylenie robocze
+ 90° / - 60°
Moc ciągnika (kW)
33-48
Min. waga ciągnika (kg)
2500
DANE TECHNICZNE
MBPL 170 LW
170
Szerokość robocza (cm)
139
Średnica wirnika (mm)
50-75
Moc ciągnika (KM)
650
Waga maszyny (kg)
Wysokość transportowa (cm)
264
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
16
Waga bijaka (kg)
1,0
Rzędy przeciwnoży
2
Nachylenie robocze
+ 90° / - 60°
Moc ciągnika (kW)
37-55
Min. waga ciągnika (kg)
3000
DANE TECHNICZNE
MBPL 200 LW
200
Szerokość robocza (cm)
139
Średnica wirnika (mm)
60-80
Moc ciągnika (KM)
691
Waga maszyny (kg)
Wysokość transportowa (cm)
294
Liczba pasów (szt.)
4
Liczba bijaków (szt.)
18
Waga bijaka (kg)
1,0
Rzędy przeciwnoży
2
Nachylenie robocze
+ 90° / - 60°
Moc ciągnika (kW)
44-59
Min. waga ciągnika (kg)
3500
SPRZĘT
Robustna konstrukcija, vsestranska funkcionalnost in dolga življenjska doba.
Standardna oprema1 test
- Rotor with patented Low Vib (LW) distribution of the flails
- Hydraulic side and vertical offset
- Purpose-designed counter knives, screwed in one row, and welded L-profile for additional shredding of the material
- Rubber flap protection
- Mechanical collision protection with a swingarm
- Gearbox with free wheel 540 rpm
- Metal flaps
- Automatic belt tensioning
- Supporting roller
- Two positions of the supporting roller
- Adjustable sweeper arm length
Dodatna oprema
01
Spring collision protection
Spring collision protection
The spring collision protection safeguards the flail mower, which offsets and opens upon impact with an obstacle. This helps prevent potential damage.
Dodatna oprema
01
Spring collision protection
The spring collision protection safeguards the flail mower, which offsets and opens upon impact with an obstacle. This helps prevent potential damage.
ADVANTAGES
The machine features specific advantages designed for optimal use
Patent Low Vib
The Low Vib patent allows for faster rotor rotation with a higher circumferential speed of the flails, significantly enhancing the mulching effect.
Smooth Operation
The patented distribution of the flails on the rotor minimizes vibrations, ensuring smooth operation and extending the flail mower's service life.
Sturdy Design
With a sturdy yet lighter design, they are suitable for smaller tractors.
Improved Shredding Effect
The special design of the replaceable, purpose-designed counter knives improves the shredding effect when mulching.
Drive Protection
The gearbox with free wheel protects the drive of the tractor and enables the use of a traditional PTO shaft.
Impact Protection
The flexible elastic clutch between the rotor and the drive protects the gearbox from impacts.
Reinforced Protection
The reinforced gearbox protection provides additional safety against impacts during operation or transport.
Adjustable Working Height
The adjustable working height ensures quick and easy support for specific terrain and environmental requirements, allowing the flail mower to perform optimally in different farming conditions.
Two Positions of the Supporting Roller
The inner position ensures faster material flow and thus enables higher working speeds, while the outer position improves the quality of mulching.
Floating Surface Adjustment
The flail mower features floating adjustment to adapt to uneven surfaces, ensuring optimal performance.
Higher Upward and Downward Tilt
Mulching on slopes of up to +90° upward and -60° downward enables uniform and efficient mulching of steep surfaces.
Robust Skids
Robust skids protect the rotor from impacts.
Speed Adjustment of the Offsets
The speed of the cylinder offsets is adjusted by setting the hydraulic flow control valves, which allow for precise control of the machine's offset movements.
Safe Transport
Manual locking allows safe transport on the road.
