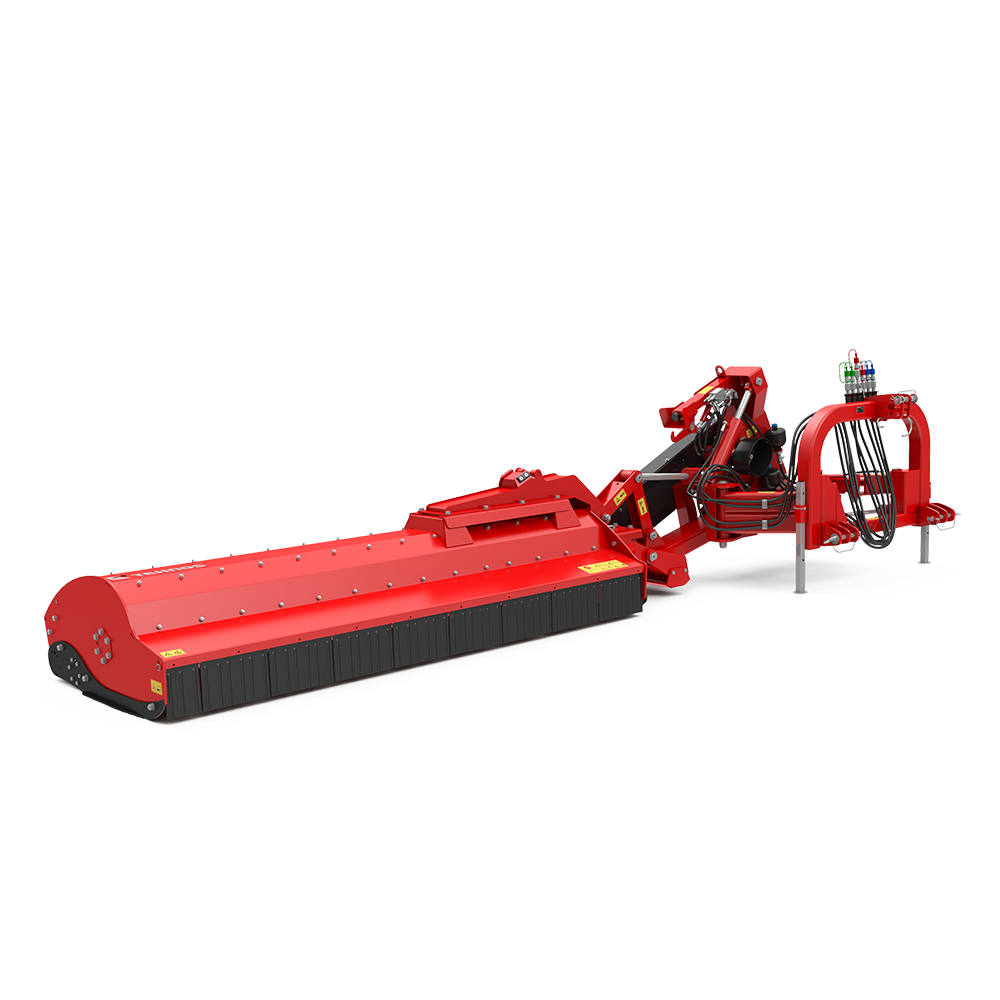

MBP PROFI LW
Bočno pregibni malčeri
With its robust design, the flexible side flail mower MBP PROFI LW is suitable for the demanding working conditions in agriculture and municipal maintenance. It is used for mulching river banks, ditches and roadsides on slopes of up to +90° upward and -60° downward.
The electronically balanced rotor with the patented Low Vib (LW) distribution of the flails ensures less vibration and minimal bending stress and deformation, extending the service life of the flail mower. Robust flails made of forged steel ensure efficient mulching by creating turbulence and vacuum.
The double skin housing ensures structural strength and greater durability. The patented hydraulic collision protection ensures the flail mower offsets upon impact with an obstacle, and then returns to its working position after passing the obstacle. The additional lifting cylinder ensures optimal terrain adjustment when working on banks. The adjustable maintenance hood allows provides additional flexibility.
200-280 cm
70-145 KS
194 mm
1442-1604 kg
Tehnične skice
The inner position of the supporting roller
The inner position ensures faster material flow and thus enables higher working speeds.
The outer position of the supporting roller
The outer position improves the quality of the mulching.
Higher upward and downward tilt
Mulching on slopes of up to +90° upward and -60° downward enables uniform and efficient mulching of steep surfaces.
Hydraulic offset
The hydraulic offset allows easy and precise left or right offset of the machine using a hydraulic cylinder.
TEHNIČKI PODACI
|
MBP 200 LW
|
MBP 220 LW
|
MBP 250 LW
|
MBP 280 LW
|
|
|---|---|---|---|---|
|
Radna širina (cm)
|
200
|
220
|
250
|
280
|
|
Transportna visina (cm)
|
306
|
326
|
352
|
382
|
|
Broj remena (kom)
|
5
|
5
|
5
|
5
|
|
Promjer rotora (mm)
|
194
|
194
|
194
|
194
|
|
Broj čekića (kom)
|
18
|
20
|
22
|
26
|
|
Masa čekića (kg)
|
1,4
|
1,4
|
1,4
|
1,4
|
|
Kućište iz dvostrukog lima
|
√
|
√
|
√
|
√
|
|
Broj vrsta kontra noževa
|
3
|
3
|
3
|
3
|
|
Vrata servisna
|
√
|
√
|
√
|
√
|
|
Radni nagib
|
+ 90° / - 60°
|
+ 90° / - 60°
|
+ 90° / - 60°
|
+ 90° / - 60°
|
|
Snaga traktora (kW)
|
51-81
|
59-88
|
70-99
|
77-107
|
|
Snaga traktora (KS)
|
70-110
|
80-120
|
95-135
|
105-145
|
|
Težina stroja (kg)
|
1442
|
1486
|
1545
|
1604
|
|
Min. težina traktora
|
4000
|
4500
|
5000
|
5500
|
TEHNIČKI PODACI
MBP 200 LW
200
Radna širina (cm)
194
Promjer rotora (mm)
70-110
Snaga traktora (KS)
1442
Težina stroja (kg)
Transportna visina (cm)
306
Broj remena (kom)
5
Broj čekića (kom)
18
Masa čekića (kg)
1,4
Kućište iz dvostrukog lima
√
Broj vrsta kontra noževa
3
Vrata servisna
√
Radni nagib
+ 90° / - 60°
Snaga traktora (kW)
51-81
Min. težina traktora
4000
TEHNIČKI PODACI
MBP 220 LW
220
Radna širina (cm)
194
Promjer rotora (mm)
80-120
Snaga traktora (KS)
1486
Težina stroja (kg)
Transportna visina (cm)
326
Broj remena (kom)
5
Broj čekića (kom)
20
Masa čekića (kg)
1,4
Kućište iz dvostrukog lima
√
Broj vrsta kontra noževa
3
Vrata servisna
√
Radni nagib
+ 90° / - 60°
Snaga traktora (kW)
59-88
Min. težina traktora
4500
TEHNIČKI PODACI
MBP 250 LW
250
Radna širina (cm)
194
Promjer rotora (mm)
95-135
Snaga traktora (KS)
1545
Težina stroja (kg)
Transportna visina (cm)
352
Broj remena (kom)
5
Broj čekića (kom)
22
Masa čekića (kg)
1,4
Kućište iz dvostrukog lima
√
Broj vrsta kontra noževa
3
Vrata servisna
√
Radni nagib
+ 90° / - 60°
Snaga traktora (kW)
70-99
Min. težina traktora
5000
TEHNIČKI PODACI
MBP 280 LW
280
Radna širina (cm)
194
Promjer rotora (mm)
105-145
Snaga traktora (KS)
1604
Težina stroja (kg)
Transportna visina (cm)
382
Broj remena (kom)
5
Broj čekića (kom)
26
Masa čekića (kg)
1,4
Kućište iz dvostrukog lima
√
Broj vrsta kontra noževa
3
Vrata servisna
√
Radni nagib
+ 90° / - 60°
Snaga traktora (kW)
77-107
Min. težina traktora
5500
OPREMA
Robustna konstrukcija, vsestranska funkcionalnost in dolga življenjska doba.
Standardna oprema1 test
- Rotor with patented Low Vib (LW) distribution of the flails
- Hydraulically adjustable variable working width
- High-quality double skin housing
- Hydraulic side and vertical offset
- Purpose-designed counter knives, screwed in three rows
- Rubber flap protection
- Gearbox with free wheel 1000 rpm
- Metal flaps
- Manual opening/closing of the maintenance hood
- Automatic belt tensioning
- Supporting roller
- Two positions of the supporting roller
- Easily adjustable working height
Dodatna oprema
01
Dodatni lim otporan na habanje
Dodatni lim otporan na habanje
The additional wear-resistant sheet metal is screwed onto the flail mower housing and is suitable for work on sandy or rocky terrain.
Dodatna oprema
01
Dodatni lim otporan na habanje
The additional wear-resistant sheet metal is screwed onto the flail mower housing and is suitable for work on sandy or rocky terrain.
ADVANTAGES
The machine features specific advantages designed for optimal use
Patent Low Vib
The Low Vib patent allows for faster rotor rotation with a higher circumferential speed of the flails, significantly enhancing the mulching effect.
Smooth Operation
The patented distribution of the flails on the rotor minimizes vibrations, ensuring smooth operation and extending the flail mower's service life.
Robustness and Durability
The machines are robust and durable, making them suitable for use in more demanding working conditions.
Massive Forged Flails
The purpose-designed massive flails made of forged steel create air turbulence and a vacuum during mulching, thereby lifting the material from the ground.
Purpose-Designed Counter Knives in Three Rows
The special design of the replaceable, purpose-designed counter knives, screwed in three rows, improves the shredding effect when mulching.
Additional Lifting Cylinder
The additional lifting cylinder ensures optimal terrain adjustment when working on banks.
Safe Transport
| The hydraulic hook allows safe transport on the road. |
Drive Protection
The gearbox with free wheel protects the drive of the tractor and enables the use of a traditional PTO shaft.
Impact Protection
The flexible elastic clutch between the rotor and the drive protects the gearbox from impacts.
Reinforced Protection
The reinforced gearbox protection provides additional safety against impacts during operation or transport.
Adjustable Working Height
The adjustable working height ensures quick and easy support for specific terrain and environmental requirements, allowing the flail mower to perform optimally in different farming conditions.
Two Positions of the Supporting Roller
The inner position ensures faster material flow and thus enables higher working speeds, while the outer position improves the quality of mulching.
Floating Surface Adjustment
The flail mower features floating adjustment to adapt to uneven surfaces, ensuring optimal performance.
Higher Upward and Downward Tilt
Mulching on slopes of up to +90° upward and -60° downward enables uniform and efficient mulching of steep surfaces.
Robust Skids
Robust skids protect the rotor from impacts.
Speed Adjustment of the Offsets
The speed of the cylinder offsets is adjusted by setting the hydraulic flow control valves, which allow for precise control of the machine's offset movements.
