MRC
Orchard and Vineyard Flail Mowers

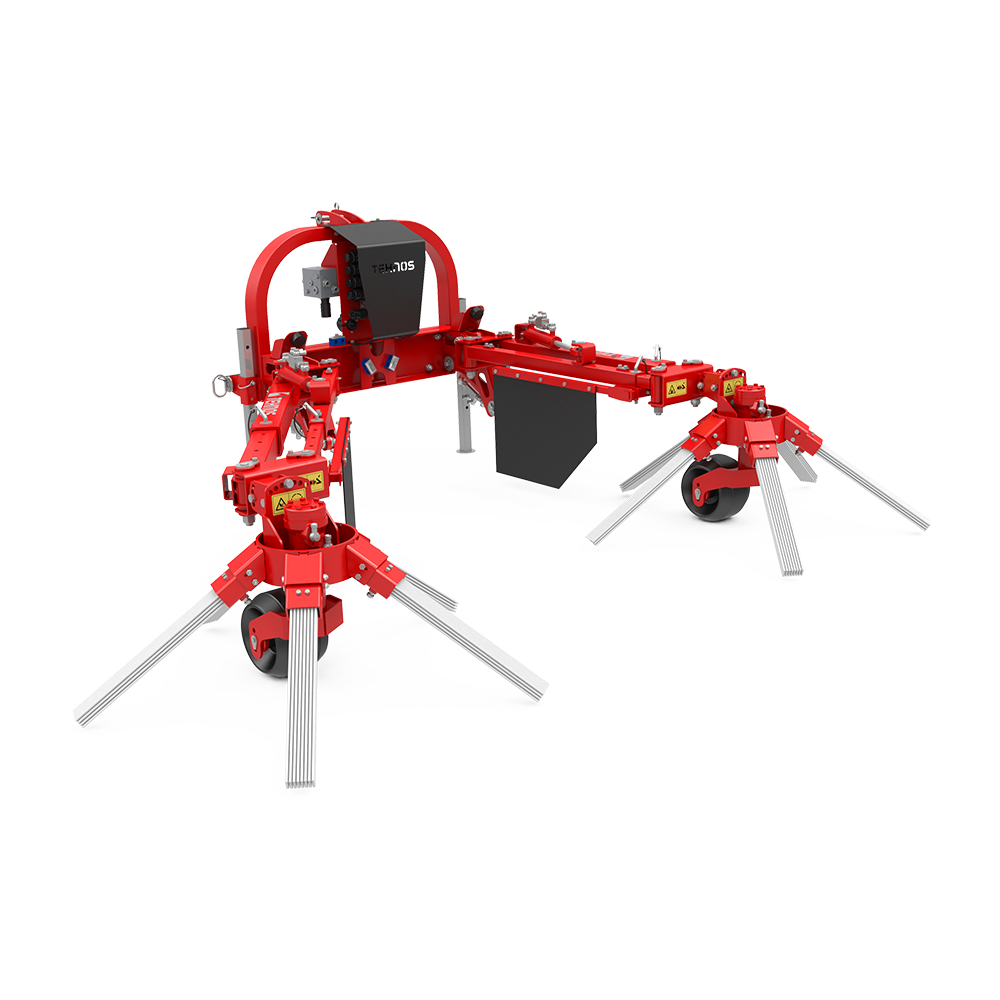

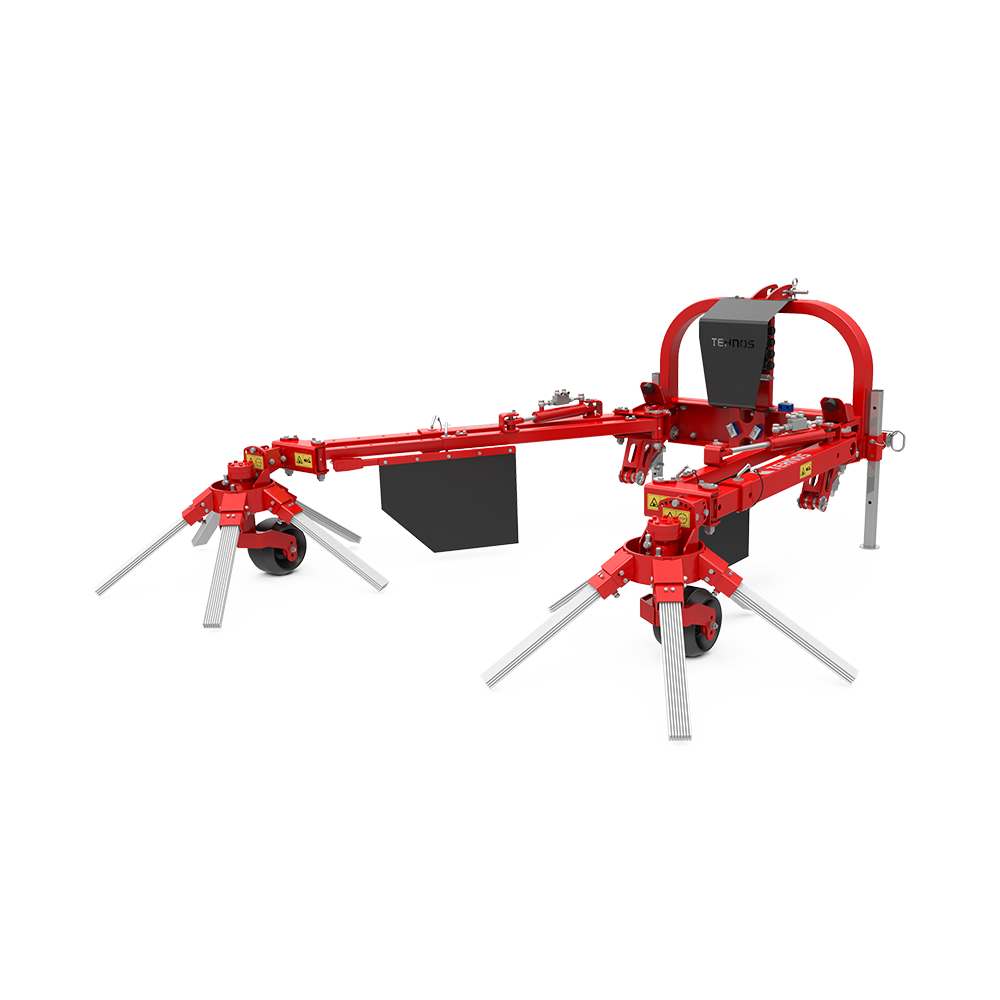

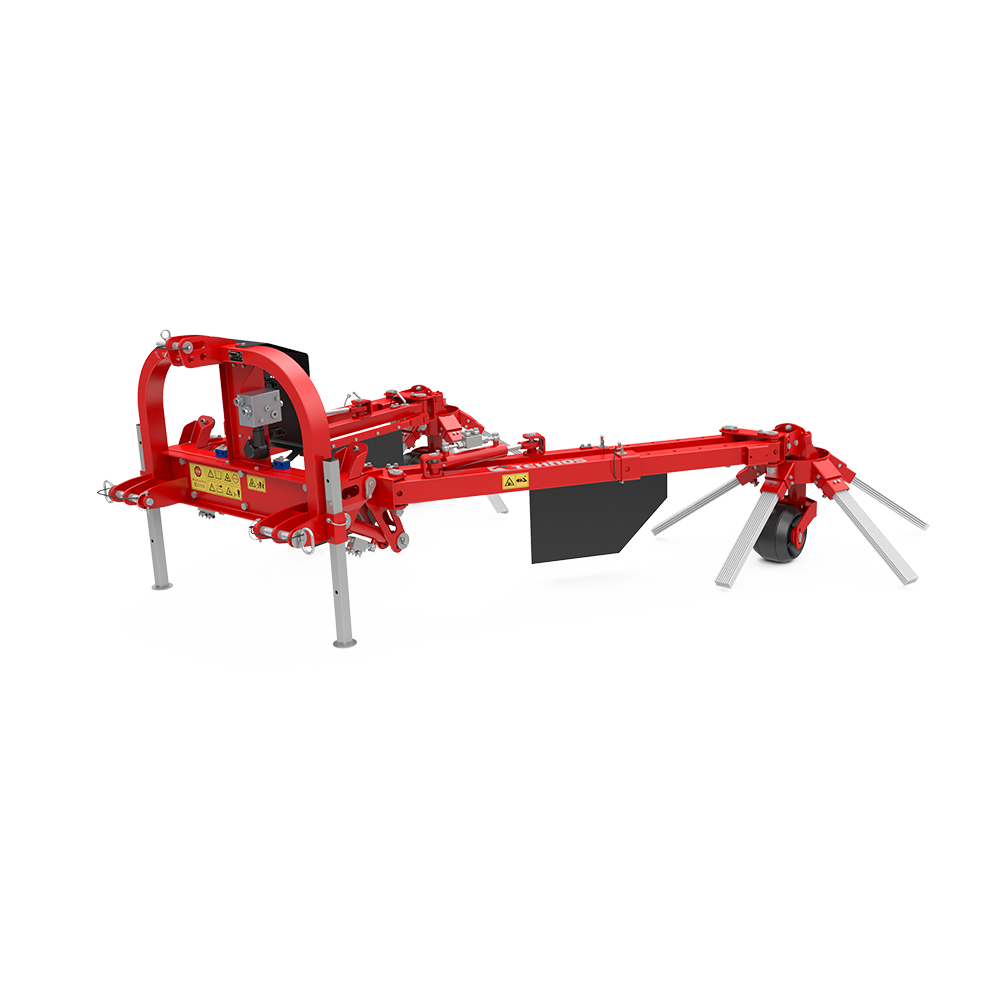

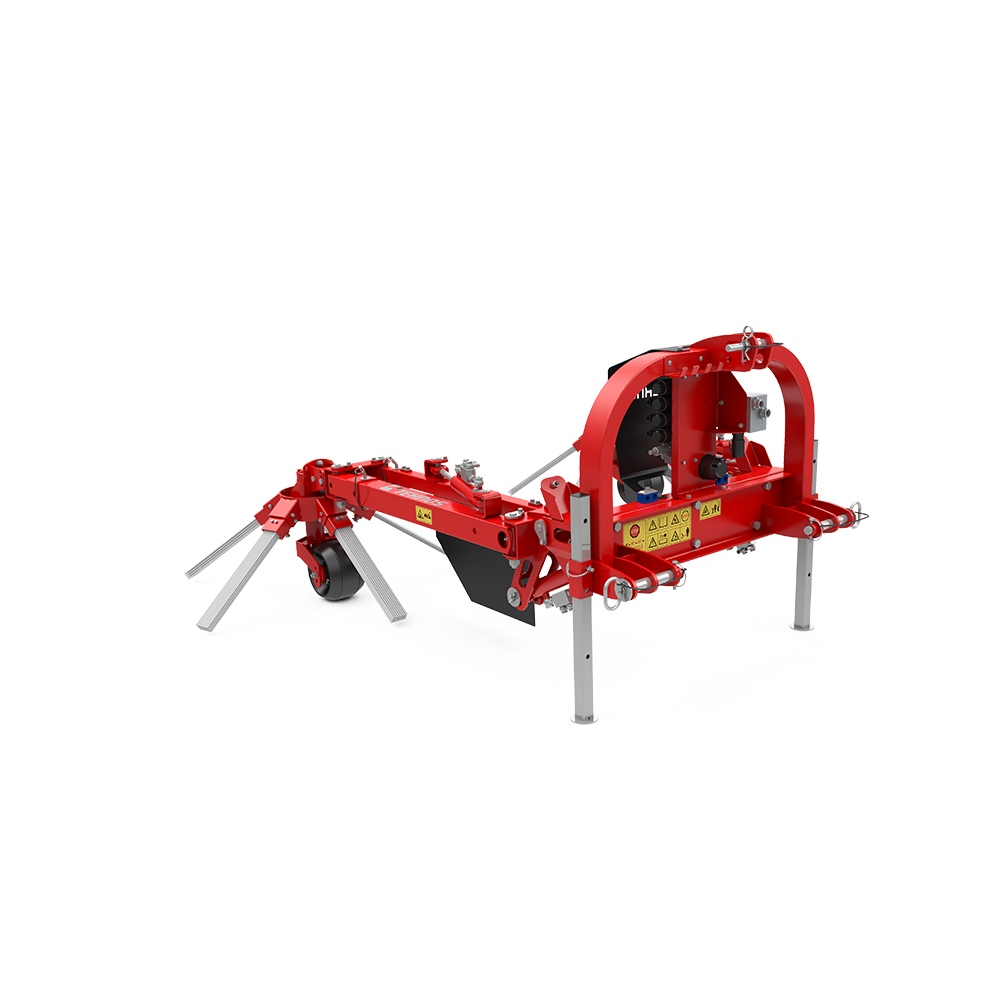

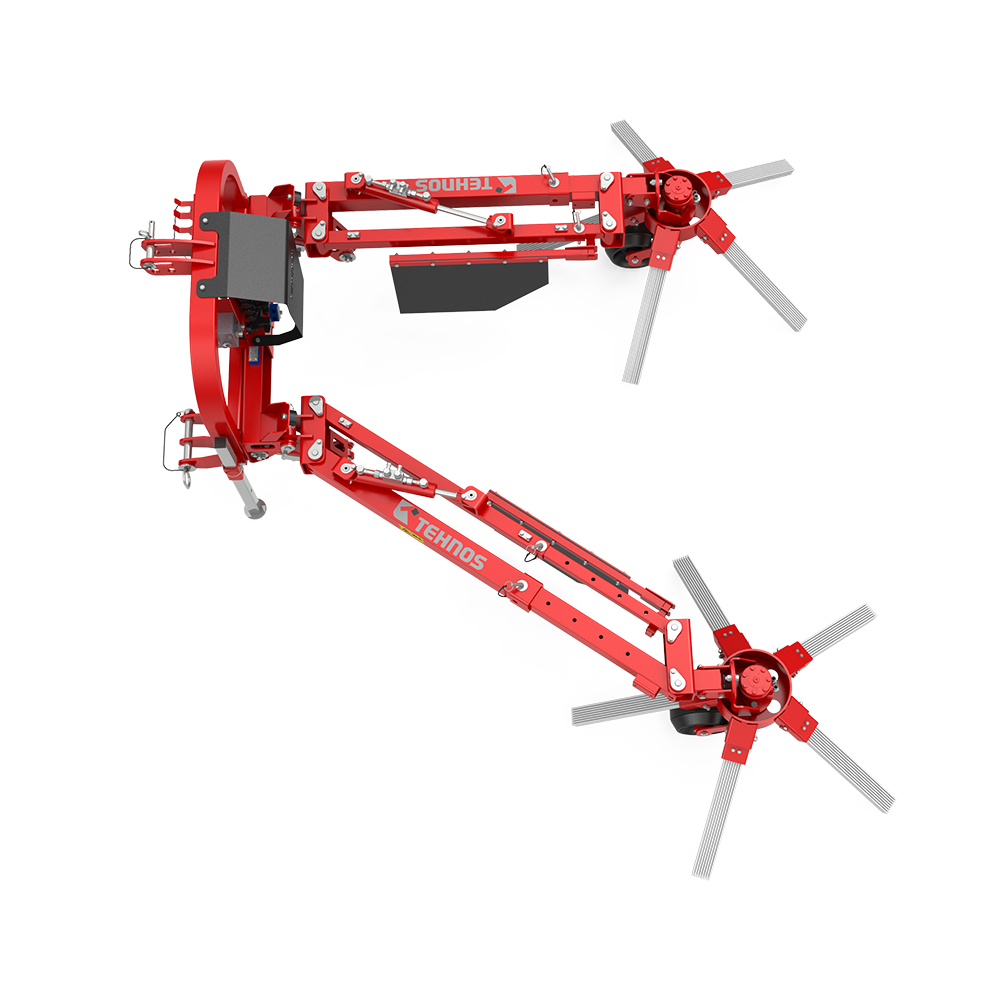

The interrow rotary cleaner MRC is designed for professional use in orchards to clean the interrow spaces after pruning, and to collect leaves and branches for final mulching.
It is powered by the tractor's hydraulic system, which requires an oil flow of 15 l/minute per unit, or 30 l/minute in total. The elastic brushes are adjustable in height and working angle, allowing for the regulation of cleaning intensity. Each unit is equipped with a support wheel for better ground tracking.
220-500 cm
180 bar
20-30 (l/min)
315 kg
Technical Sketches
tECHNICAL SPECIFICATIONS
|
MRC 500
|
|
|---|---|
|
Min. working width (cm)
|
220
|
|
Max. working width (cm)
|
500
|
|
Running speed (rpm)
|
150-200
|
|
Oil flow (l/min)
|
20-30
|
|
Oil pressure (bar)
|
180
|
|
Weight of machine (kg)
|
315
|
TECHNICAL SPECIFICATIONS
MRC 500
220
Min. working width (cm)
500
Max. working width (cm)
20-30
Oil flow (l/min)
315
Weight of machine (kg)
Running speed (rpm)
150-200
Oil pressure (bar)
180
EQUIPMENT
Robust design, versatile functionality, and long service life
Standard Equipment
- Hydraulic motor drive
- Hydraulic lift
- Adjustable supporting wheels
- Easily adjustable working height
- Adjustable sweeper arm length
- Easily adjustable working width
ADVANTAGES
The machine features specific advantages designed for optimal use
Adjustable Width
During operation, the width of the machine can be adjusted by a separate hydraulic offset of the sweeper arms.
Adjustable Length
Manually adjustable length of each sweeper arm to suit the specific needs of the orchard.
Adjustable Rotation Speed
The adjustable rotation speed ensures optimal results depending on the terrain.
Lifting of Individual Sweeper Arms
The machine allows for the lifting of individual sweeper arms, making it easier to exit the row.
Speed Adjustment of the Offsets
The speed of the cylinder offsets is adjusted by setting the hydraulic flow control valves, which allow for precise control of the machine's offset movements.
