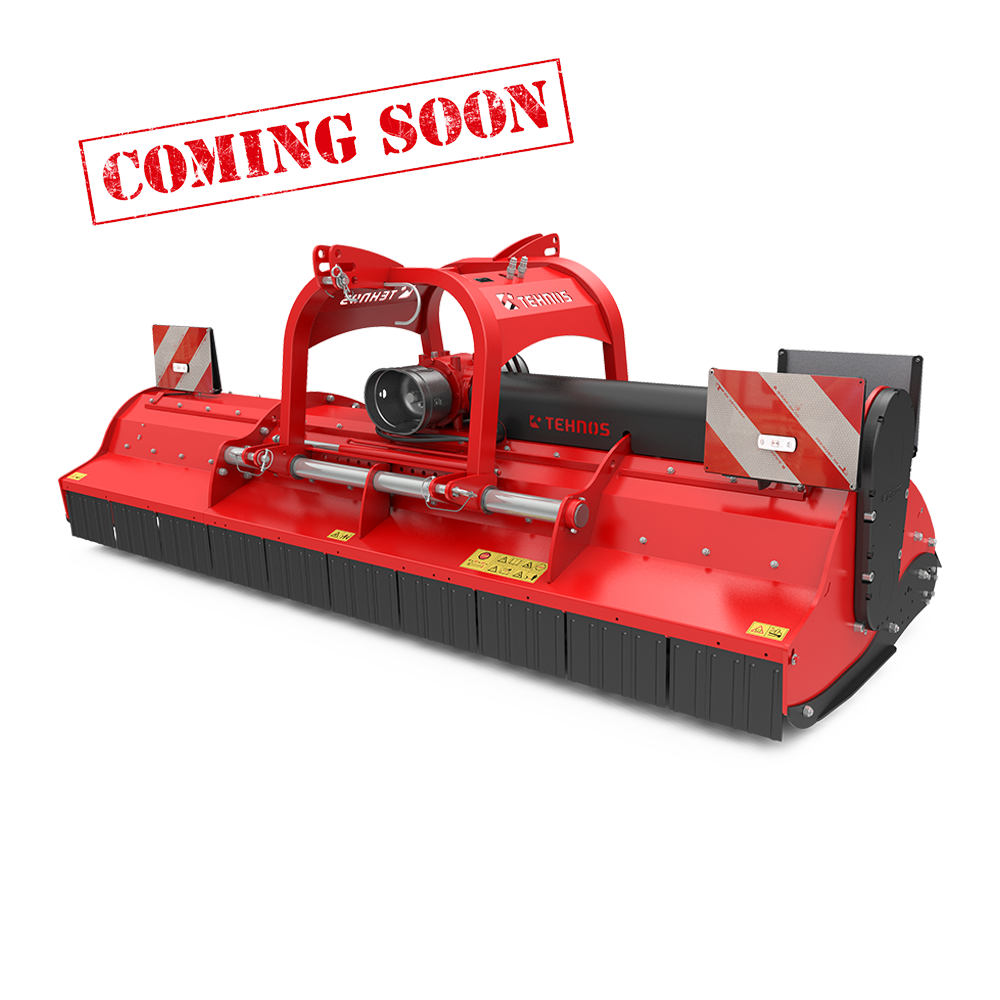

MU GT LW
Universal Flail Mowers
With its robust design, the universal flail mower MU GT LW is suitable for demanding working conditions. It is used in agriculture, municipal maintenance, orchards and vineyards and for pasture clearing.
The electronically balanced rotor with the patented Low Vib (LW) distribution of the flails ensures less vibration and minimal bending stress and deformation, extending the service life of the flail mower. Robust flails made of forged steel ensure efficient mulching by creating turbulence and vacuum.
The patented gear transmission flail mower reduces the overall transmission width, allowing for an increased working width. The increased power transmission efficiency allows for operation in more demanding working conditions and higher working speeds.
292-322 cm
110-160 HP
244 mm
1294-1350 kg
Technical Sketches
The inner position of the supporting roller
The inner position ensures faster material flow and thus enables higher working speeds.
The outer position of the supporting roller
The outer position improves the quality of the mulching.
tECHNICAL SPECIFICATIONS
|
MU 300 GT LW
|
MU 330 GT LW
|
|
|---|---|---|
|
Working width (cm)
|
292
|
322
|
|
Transport width (cm)
|
300
|
330
|
|
Offset (cm)
|
58
|
58
|
|
Gear transmission
|
√
|
√
|
|
Diameter of rotor (mm)
|
244
|
244
|
|
Number of flails (pc)
|
52
|
60
|
|
Weight of flails (kg)
|
1,4
|
1,4
|
|
Double skin case
|
√
|
√
|
|
Rows of counter-knives
|
3
|
3
|
|
Maintenance hood
|
√
|
√
|
|
Tractor power (kW)
|
81-110
|
88-117
|
|
Tractor power (HP)
|
110-150
|
120-160
|
|
Weight of machine (kg)
|
1294
|
1350
|
TECHNICAL SPECIFICATIONS
MU 300 GT LW
292
Working width (cm)
244
Diameter of rotor (mm)
110-150
Tractor power (HP)
1294
Weight of machine (kg)
Transport width (cm)
300
Offset (cm)
58
Gear transmission
√
Number of flails (pc)
52
Weight of flails (kg)
1,4
Double skin case
√
Rows of counter-knives
3
Maintenance hood
√
Tractor power (kW)
81-110
TECHNICAL SPECIFICATIONS
MU 330 GT LW
322
Working width (cm)
244
Diameter of rotor (mm)
120-160
Tractor power (HP)
1350
Weight of machine (kg)
Transport width (cm)
330
Offset (cm)
58
Gear transmission
√
Number of flails (pc)
60
Weight of flails (kg)
1,4
Double skin case
√
Rows of counter-knives
3
Maintenance hood
√
Tractor power (kW)
88-117
EQUIPMENT
Robust design, versatile functionality, and long service life
Standard Equipment
- Rotor with patented Low Vib (LW) distribution of the flails
- Patented gear transmission
- High-quality double skin housing
- Double-sided linkage
- Hydraulic offset
- Purpose-designed counter knives, screwed in three rows
- Self-lubricating slide bushes
- Gearbox with free wheel 1000 rpm
- Metal flaps
- Manual opening/closing of the maintenance hood
- Supporting roller
- Adjustable sweeper arm length
Additional Equipment
01
Reversible gearbox
Reversible gearbox
The gearbox rotation works in both directions, meaning the flail mower will operate correctly regardless of the direction of rotation of the tractor's output shaft. Suitable for tractors with reversing driver station.
02
Chains and rubber flap protection
Chains and rubber flap protection
When mulching terrain with a lot of stones, it is advisable to replace the metal flaps with chains and a rubber flap. These are better able to withstand the impact of stones.
03
Warning signs and LED lighting
Warning signs and LED lighting
Warning signs and LED lighting enhance visibility and safety during transport on the road. The LED lighting ensures visibility even in the dark.
04
Linkage suspension
Linkage suspension
Through linkage suspension, the tractor takes on part of the machine's weight, enabling better adaptation of the flail mower to varying terrain conditions. It is used in combination with the double-sided linkage.
05
Linkage extension
Linkage extension
The linkage extension elevates the three-point linkage by 250 mm. This allows the tractor arms to remain parallel to the ground, reducing the force acting on the flail mower. It is used in combination with the double-sided linkage and linkage suspension. Suitable for larger tractors.
06
Wheels 12˝
Wheels 12˝
For 12" wheels, the supporting roller is replaced by a bar, on which the two wheel brackets are mounted. The spacing between the brackets can be adjusted as needed. The brackets and 12" wheels are bigger and stronger compared to the 8".
Additional Equipment
01
Reversible gearbox
The gearbox rotation works in both directions, meaning the flail mower will operate correctly regardless of the direction of rotation of the tractor's output shaft. Suitable for tractors with reversing driver station.
02
Chains and rubber flap protection
When mulching terrain with a lot of stones, it is advisable to replace the metal flaps with chains and a rubber flap. These are better able to withstand the impact of stones.
03
Warning signs and LED lighting
Warning signs and LED lighting enhance visibility and safety during transport on the road. The LED lighting ensures visibility even in the dark.
04
Linkage suspension
Through linkage suspension, the tractor takes on part of the machine's weight, enabling better adaptation of the flail mower to varying terrain conditions. It is used in combination with the double-sided linkage.
05
Linkage extension
The linkage extension elevates the three-point linkage by 250 mm. This allows the tractor arms to remain parallel to the ground, reducing the force acting on the flail mower. It is used in combination with the double-sided linkage and linkage suspension. Suitable for larger tractors.
06
Wheels 12˝
For 12" wheels, the supporting roller is replaced by a bar, on which the two wheel brackets are mounted. The spacing between the brackets can be adjusted as needed. The brackets and 12" wheels are bigger and stronger compared to the 8".
ADVANTAGES
The machine features specific advantages designed for optimal use
Increased Efficiency
| The increased power transmission efficiency enables operation in more demanding working conditions and higher working speeds. |
Patent Low Vib
The Low Vib patent allows for faster rotor rotation with a higher circumferential speed of the flails, significantly enhancing the mulching effect.
Smooth Operation
The patented distribution of the flails on the rotor minimizes vibrations, ensuring smooth operation and extending the flail mower's service life.
Increased Working Width
| The patented gear transmission flail mower reduces the overall transmission width, allowing for an increased working width. |
Easier Maintenance
The maintenance of the gear transmission is easier, as it only requires an oil change, which is quicker and more cost-effective compared to belts.
Robustness and Durability
The machines are robust and durable, making them suitable for use in more demanding working conditions.
Massive Forged Flails
The purpose-designed massive flails made of forged steel create air turbulence and a vacuum during mulching, thereby lifting the material from the ground.
Purpose-Designed Counter Knives in Three Rows
The special design of the replaceable, purpose-designed counter knives, screwed in three rows, improves the shredding effect when mulching.
Smooth Gliding
The self-lubricating slide bushes ensure smooth gliding of the movable linkage.
Drive Protection
The gearbox with free wheel protects the drive of the tractor and enables the use of a traditional PTO shaft.
Two Positions of the Supporting Roller
The inner position ensures faster material flow and thus enables higher working speeds, while the outer position improves the quality of mulching.
