P 20

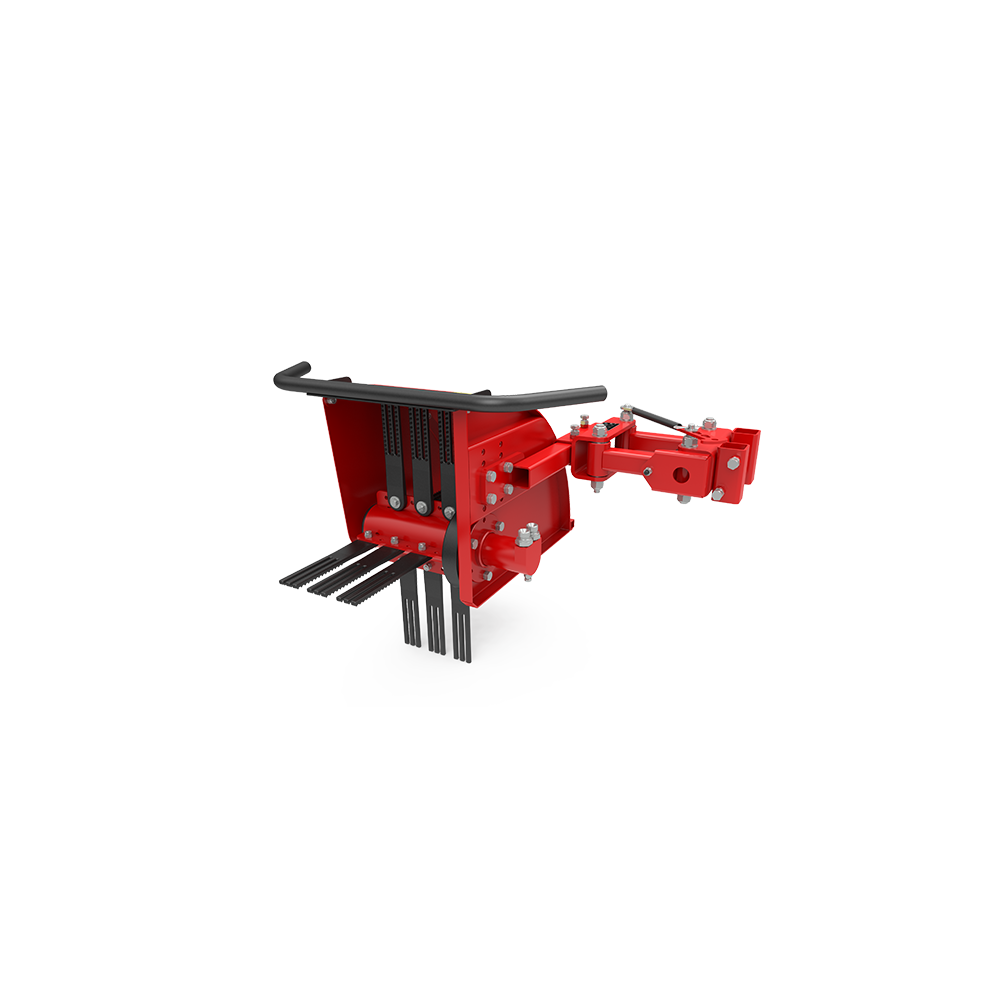

Orchard and Vineyard Flail Mowers
The P 20 weed mower is designed for professional use in vineyards to remove old bark and young shoots on the stems.
It can be installed on a purpose-designed linkage PPOS, which can be mounted on the front or rear of the tractor. The weed mower is often mounted on finishing mowers MTV VARIO PROFI. For better visibility during operation, it is recommended to mount both the weed mower and the flail mower on the front of the tractor.
20 cm
180 bar
15-20 l/min
45 kg
Technical Sketches
tECHNICAL SPECIFICATIONS
|
P 20 L
|
P 20 D
|
|
|---|---|---|
|
Working width (cm)
|
20
|
20
|
|
Mounting - left
|
√
|
X
|
|
Mounting - right
|
×
|
√
|
|
Transport width (cm)
|
86
|
86
|
|
Transport depth (cm)
|
50
|
50
|
|
Number of brushes (pc)
|
12
|
12
|
|
Lenght of brush (cm)
|
22/30
|
22/30
|
|
Running speed (rpm)
|
1000
|
1000
|
|
Oil flow (l/min)
|
15-20
|
15-20
|
|
Oil pressure (bar)
|
180
|
180
|
|
Weight of machine (kg)
|
45
|
45
|
TECHNICAL SPECIFICATIONS
P 20 L
20
Working width (cm)
15-20
Oil flow (l/min)
180
Oil pressure (bar)
45
Weight of machine (kg)
Mounting - left
√
Mounting - right
×
Transport width (cm)
86
Transport depth (cm)
50
Number of brushes (pc)
12
Lenght of brush (cm)
22/30
Running speed (rpm)
1000
TECHNICAL SPECIFICATIONS
P 20 D
20
Working width (cm)
15-20
Oil flow (l/min)
180
Oil pressure (bar)
45
Weight of machine (kg)
Mounting - left
X
Mounting - right
√
Transport width (cm)
86
Transport depth (cm)
50
Number of brushes (pc)
12
Lenght of brush (cm)
22/30
Running speed (rpm)
1000
EQUIPMENT
Robust design, versatile functionality, and long service life
Standard Equipment
- Hydraulic motor drive
- Parallelogram mounting
- Rotor speed regulator
- Mechanical offset
- Adjustable sweeper arm length
- Easily adjustable working width
Additional Equipment
01
Purpose-designed linkage PPOS
Purpose-designed linkage PPOS
The purpose-designed linkage PPOS is built for operation in combination with weed mowers P 20 and P 80.
Additional Equipment
01
Purpose-designed linkage PPOS
The purpose-designed linkage PPOS is built for operation in combination with weed mowers P 20 and P 80.
The purpose-designed linkage PPOS + P 20
|
PPOS 180/240
PPOS + P 20 | PPOS 180/240 PPO + 2xP 20 | PPOS 230/340 | PPO 230/340 |
|
|
Min. working width (cm)
|
56
| 115 | 82 | 165 |
|
Max. working width (cm)
|
102
| 205 | 152 | 305 |
|
Working depth (A) (cm)
|
130
| 140 | 130 | 140 |
|
Transport width (B) (cm)
|
105
| 113 | 135 | 170 |
Width (C) (cm) | 56 | 56 | 82 | 82 |
Transport depth (A) (cm) | 130 | 140 | 130 | 140 |
Running speed (rpm) | 1000 | 1000 | 1000 | 1000 |
Oil flow (l/min) | 10-15 | 15-20 | 10-15 | 15-20 |
Oil pressure (bar) | 180 | 180 | 180 | 180 |
Offset (cm) | 25 | 2x25 | 25 | 2x25 |
Število hid. priključkov (par) | 2 | 3 | 2 | 3 |
Number of brushes (pc) | 12 | 2x12 | 12 | 2x12 |
Weight of machine (kg) | 154 | 251 | 160 | 265 |
ADVANTAGES
The machine features specific advantages designed for optimal use
Adjustable Working Intensity
The working intensity can be adjusted by selecting the smooth or coarse side of the brush.
Adjustable Rotation Speed
The adjustable rotation speed ensures optimal results depending on the terrain.
Option for Mounting on a Flail Mower
The purpose-designed bracket allows the mounting of the attachment arm on a flail mower.
Option for Mounting on a Purpose-Designed Linkage
The machine is suitable for mounting on a purpose-designed linkage that allows additional widening or narrowing.
Speed Adjustment of the Offsets
The speed of the cylinder offsets is adjusted by setting the hydraulic flow control valves, which allow for precise control of the machine's offset movements.
