INTERROW CULTIVATOR OK 4
Interrow Cultivator

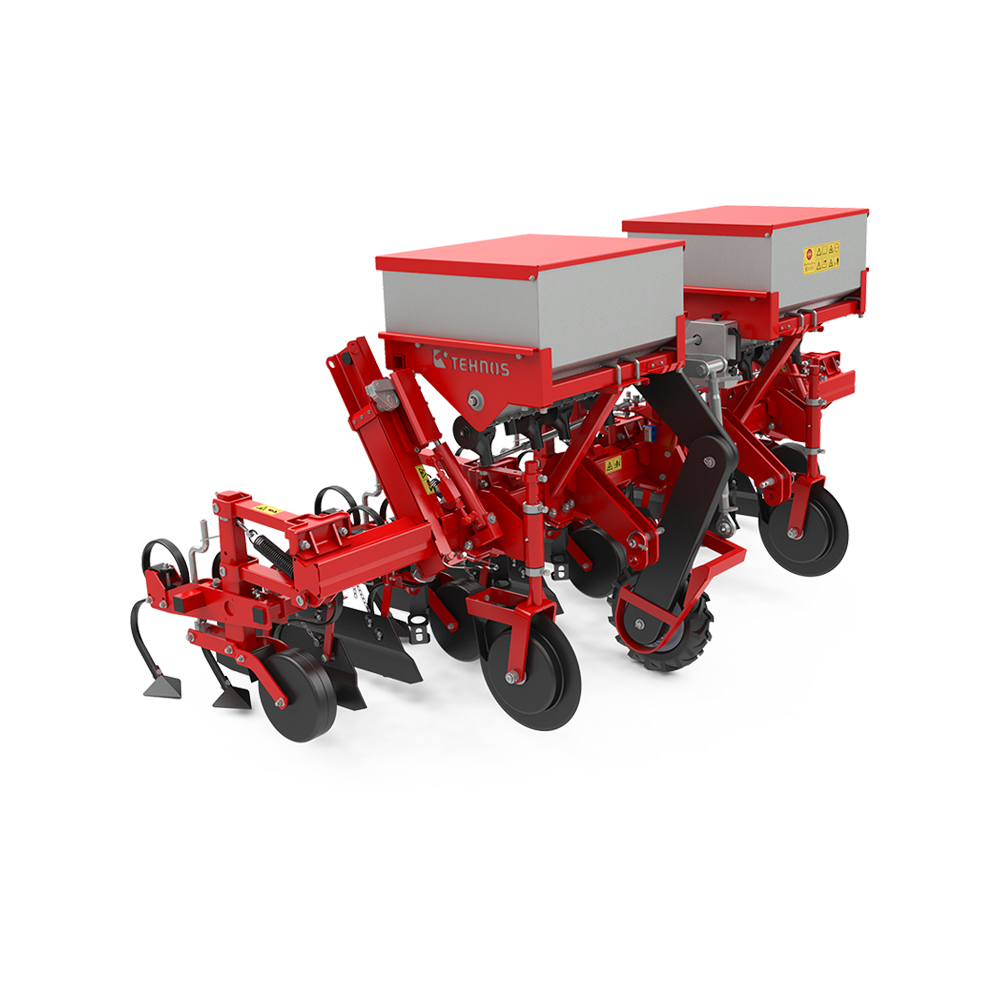

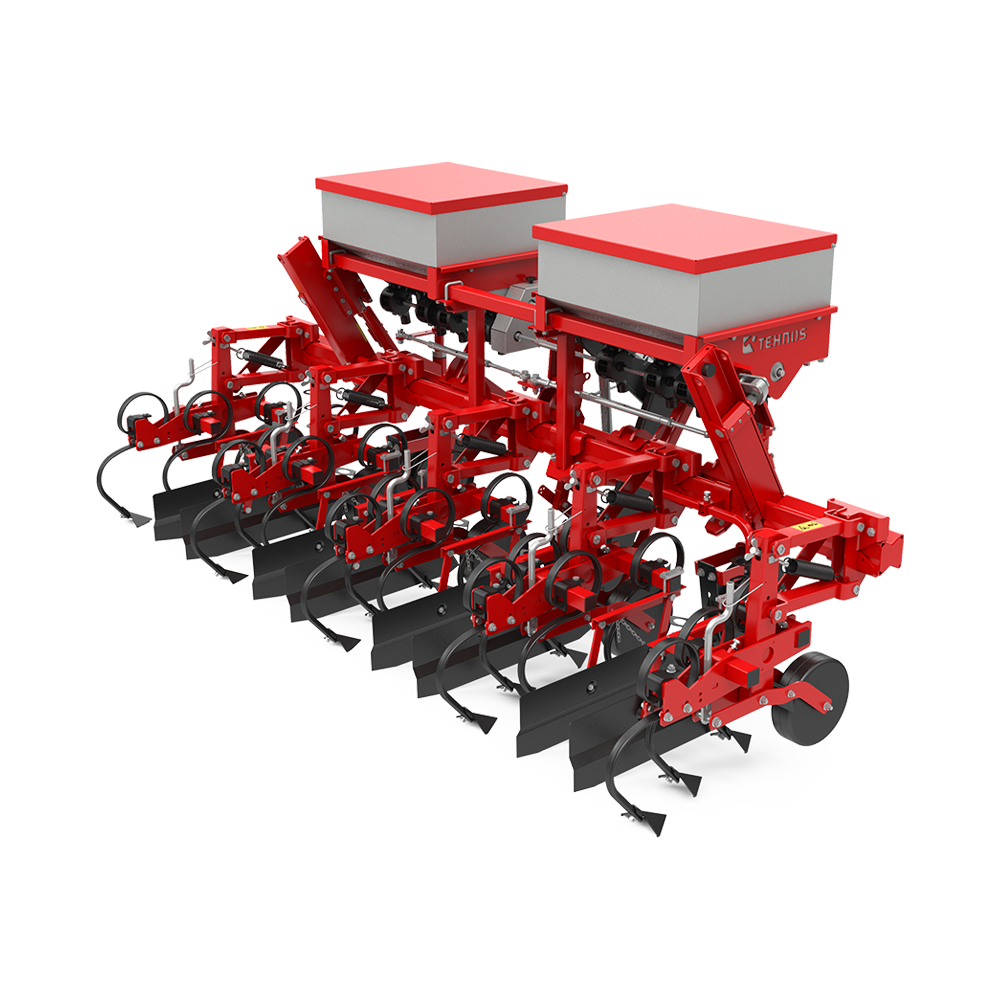

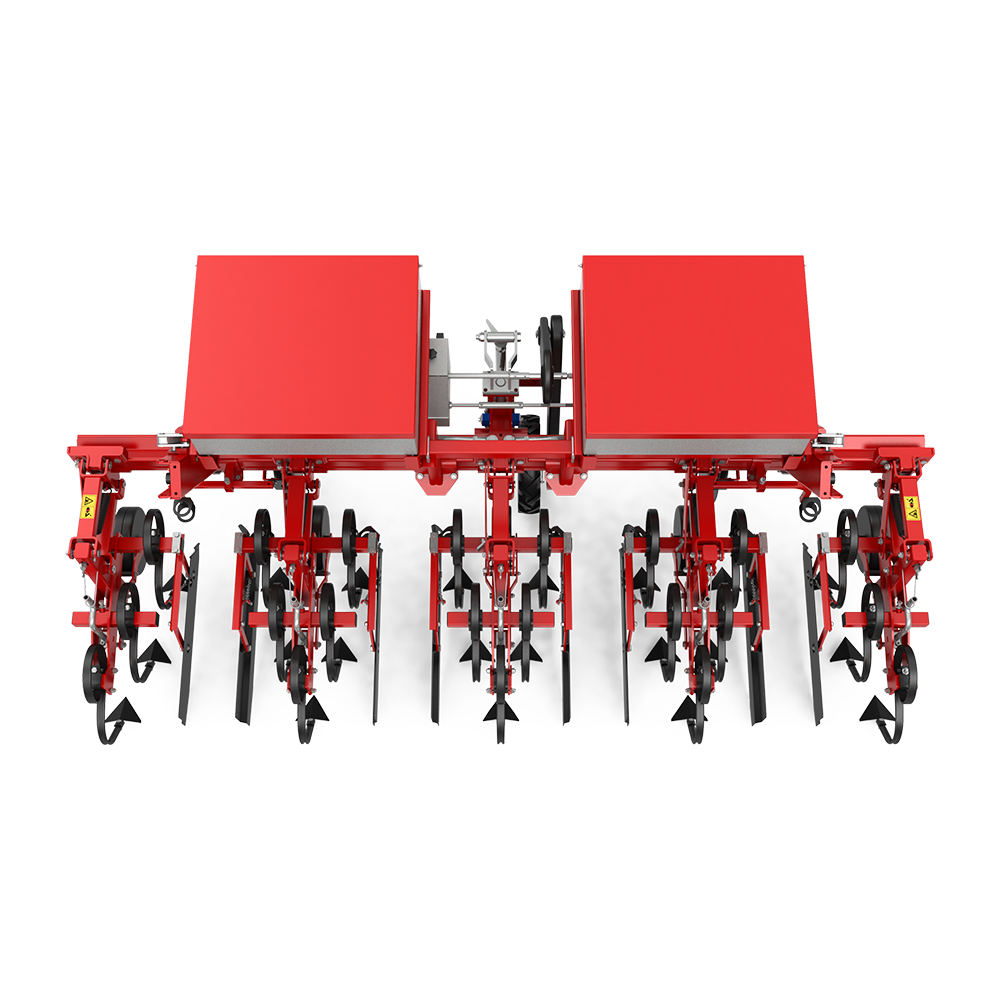

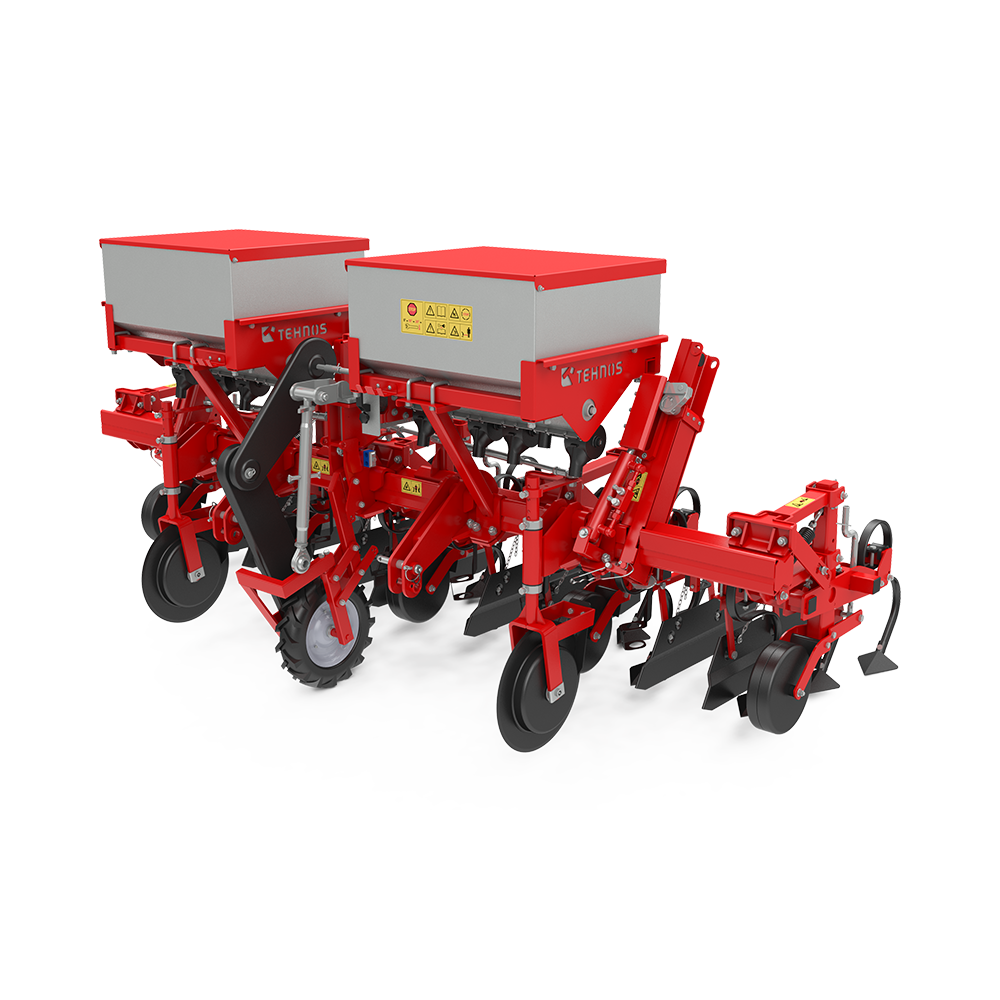

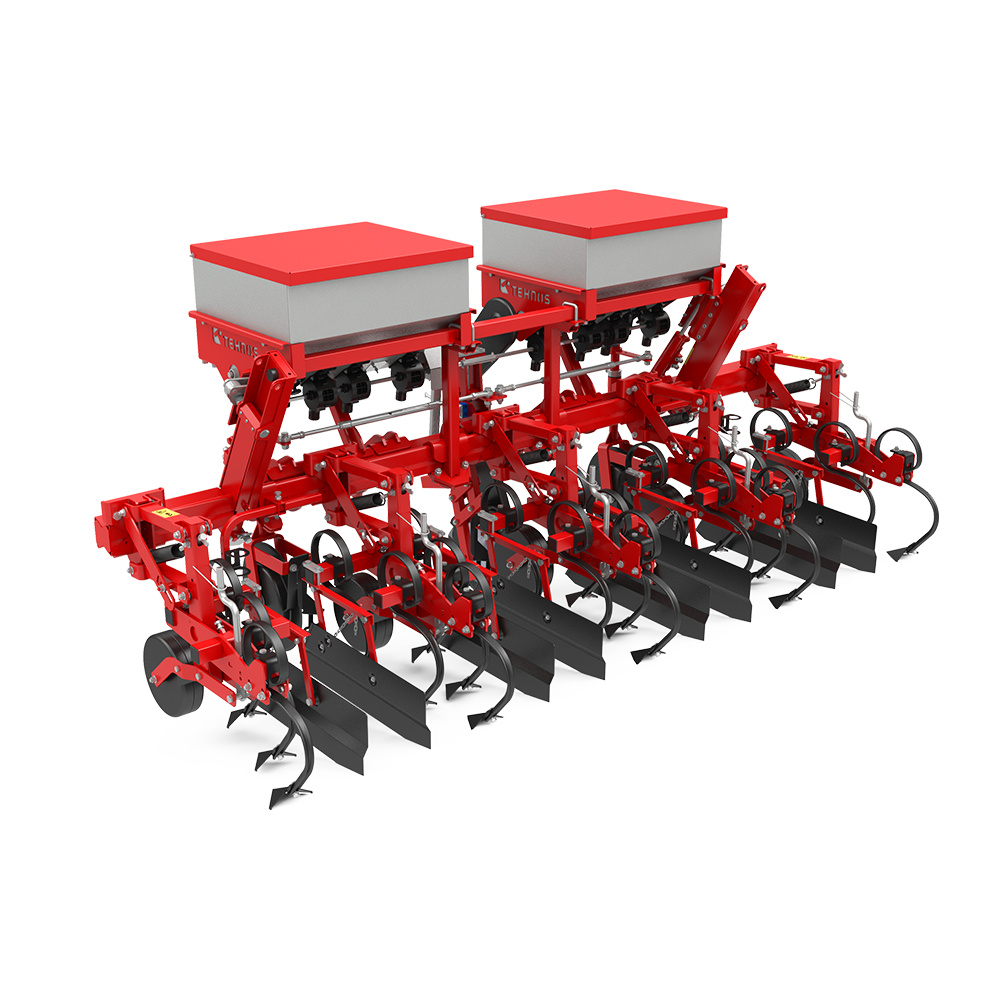

The four-row interrow cultivator OK 4 is a professional machine for interrow cultivation of crops such as maize, beet, cabbage, onions, carrots, lettuce, potatoes and other crops with row spacing from 28 to 75 cm. It enables fast and efficient cultivation of larger areas by working a wider area of land and increasing productivity.
The depth is adjusted by an adjustable supporting wheel on each cultivating aggregate separately. The interrow width is regulated by adjusting the position of the spring tines. The guiding wheels follow and, through the top link and precise lever mechanism, indirectly control the interrow cultivator between the rows. The parallelogram-mounted aggregates ensure constant adjustment to the working surface, with the force being adjusted using a spring. The cultivator also offers the possibility of simultaneous fertilization, providing better nutrients supply to the plants.
250 cm
45-65 HP
0,7 - 1,0 ha/h
507 kg
Technical Sketches
tECHNICAL SPECIFICATIONS
|
OK 4
|
|
|---|---|
|
Working width (cm)
|
250
|
|
Weight of flails (kg)
|
98
|
|
Hopper capacity (l)
|
2x150
|
|
Efficiency (ha/h)
|
0,7 - 1,0
|
|
Tractor power (kW)
|
33-48
|
|
Tractor power (HP)
|
45-65
|
|
Weight of machine (kg)
|
507
|
|
Fertilizer weight (kg)
|
98
|
TECHNICAL SPECIFICATIONS
OK 4
250
Working width (cm)
0,7 - 1,0
Efficiency (ha/h)
45-65
Tractor power (HP)
507
Weight of machine (kg)
Weight of flails (kg)
98
Hopper capacity (l)
2x150
Tractor power (kW)
33-48
Fertilizer weight (kg)
98
EQUIPMENT
Robust design, versatile functionality, and long service life
Standard Equipment
- Adjustable supporting wheels
- Steering system
- Tillage spring sweep points with holders for potato and maize cultivation
- Parallelogram-mounted aggregates
- Adjustable sweeper arm length
- Easily adjustable working width
Additional Equipment
01
Fertilizer dispensing device
Fertilizer dispensing device
The fertilizer dispensing device allows for precise fertilizer dosing with a volumetric dispenser. The tank is made of stainless steel.
02
Manual steering system with a seat
Manual steering system with a seat
The manual steering system with a seat allows manual operation and adjustment of the cultivator.
03
Hydraulic folding of outer aggregates
Hydraulic folding of outer aggregates
The hydraulic folding of outer aggregates allows easy folding of outdoor aggregates using a hydraulic cylinder.
04
Earthing-up plough
Earthing-up plough
The earthing-up plough covers the tuber with the soil, forming a ridge.
05
Protective plate
Protective plate
The protective plate prevents crop damage.
06
Protective disc
Protective disc
The protective disc prevents crop damage and loosens the soil.
Additional Equipment
01
Fertilizer dispensing device
The fertilizer dispensing device allows for precise fertilizer dosing with a volumetric dispenser. The tank is made of stainless steel.
02
Manual steering system with a seat
The manual steering system with a seat allows manual operation and adjustment of the cultivator.
03
Hydraulic folding of outer aggregates
The hydraulic folding of outer aggregates allows easy folding of outdoor aggregates using a hydraulic cylinder.
04
Earthing-up plough
The earthing-up plough covers the tuber with the soil, forming a ridge.
05
Protective plate
The protective plate prevents crop damage.
06
Protective disc
The protective disc prevents crop damage and loosens the soil.
ADVANTAGES
The machine features specific advantages designed for optimal use
Terrain Adjustment
Adjusting the interrow distance, as well as the depth and width of cultivation, allows for precise soil treatment according to the type of crop and field conditions.
Automatic Adjustment
The parallelogram-mounted aggregates ensure constant adjustment to the working surface, with the force being adjusted using a spring.
Adjustable Supporting Wheels
The adjustable supporting wheel allows the depth to be set individually on each cultivating aggregate. The interrow width is regulated by adjusting the position of the spring tines.
Wheel Following and Steering
The guiding wheels follow and, through the top link and precise lever mechanism, indirectly control the interrow cultivator between the rows.
Prevention of Weed Growth
It prevents weed growth, reduces soil compaction, and limits water evaporation from the soil.
